| 브랜드 이름: | HUAAO |
| 모델 번호: | HE003 |
| MOQ: | 100㎡ |
| 가격: | US$8-9.2/㎡ |
| 포장에 대한 세부 사항: | 1. 폼 보호 2. 목재 프레임지지 3. 지게차 로딩 및 언로드 4. 컨테이너 하중 |
| 지불 조건: | l/c, t/t, d/a, d/p, t/t |

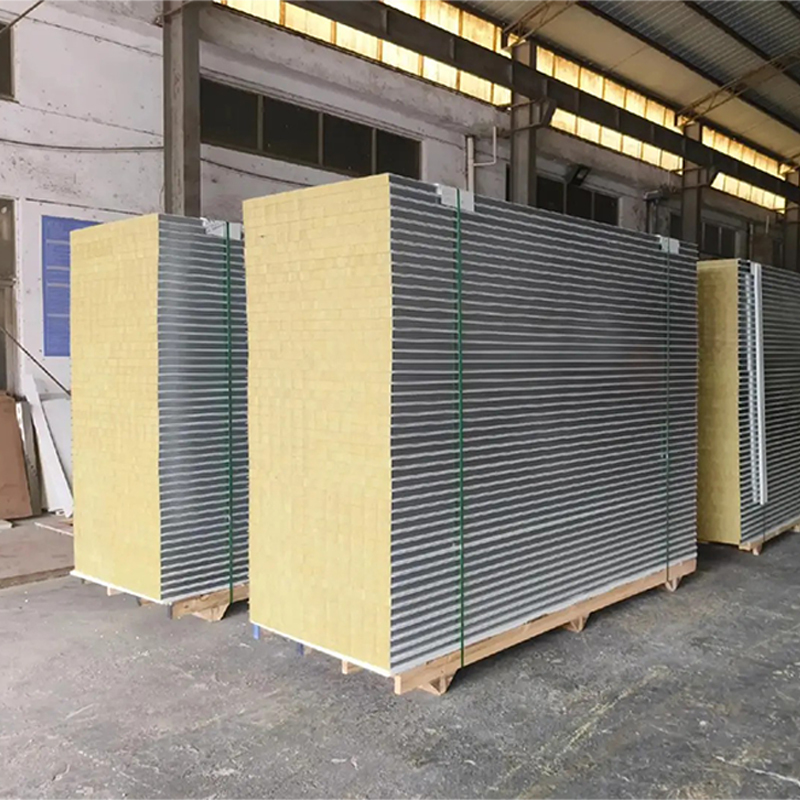

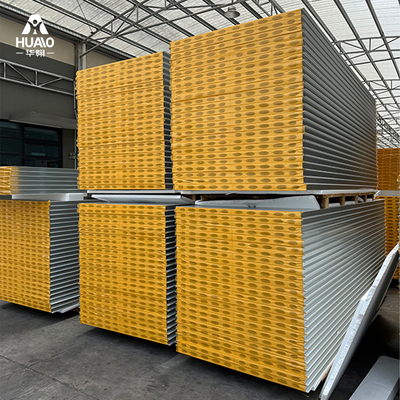

This product is a rock wool core sandwich panel with sheet metal facings, designed for use in construction walls and roofs. Its key selling points are its superior fire safety (A1 rating), effective sound insulation, and good thermal performance. It is also marketed for use in cleanrooms, which requires a high-quality installation to be effective.
Critical Conclusions:
"Fireproof" is a Valid Claim: Unlike panels with plastic-based cores (EPS, PU, PIR), rock wool is truly non-combustible. This is its single biggest advantage and makes it a mandatory choice in many high-safety applications.
Ideal for Noisy and High-Risk Areas: The combination of fireproofing and sound insulation makes these panels perfect for industrial plants, power stations, factories, and other facilities where both safety and noise control are priorities.

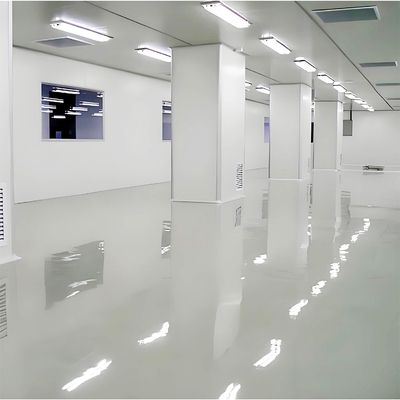

"Clean Room" Application is Conditional: The steel-faced panels provide a suitable smooth, non-shedding surface. However, achieving a true cleanroom environment depends entirely on the installation quality—ensuring all seams, doors, and windows are hermetically sealed.
Omitted Specification: The description lacks the official fire rating certificate (e.g., EN 13501-1 Class A1) and the thermal conductivity (Lambda value - λ), which are essential for professional evaluation.
| Attribute | Value |
|---|---|
| Panel Sheet Material | Galvanized steel |
| Product Name | MGO/Rockwool/Silica/PU/Foam sandwich panel |
| Type | Machine-made panel |
| Panel Sheet Thickness | 0.376; 0.426; 0.476; 0.526 mm |
| Panel Thickness | 50mm, 75mm, 100mm,Customized |
| Width | 950mm ,980mm, 1180mm |
| Length | Customized |
| Core Material | MGO/Rockwool/Silica/PU/Foam sandwich panel |
| Color | Customized |

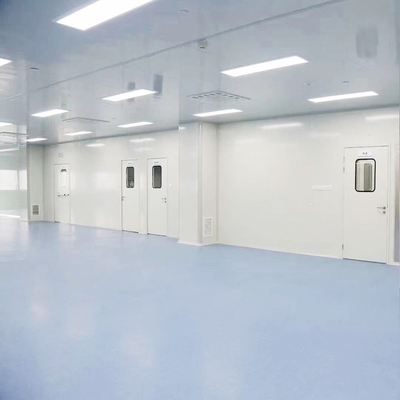

GMP impact resistant MGSO sandwich panel is a specialized clean room wall panel solution for food factories and hospital buildings. This innovative panel features a core material made from magnesium sulfate and magnesium oxide using lamination technology, creating an environmentally friendly product with superior performance characteristics.
| Type | Mechanism panel |
| Width | 950mm, 1150mm |
| Model | HE003 |
| Fire Rating | 60min (A1 grade) |
| Available Colors | Blue, off-white, green |

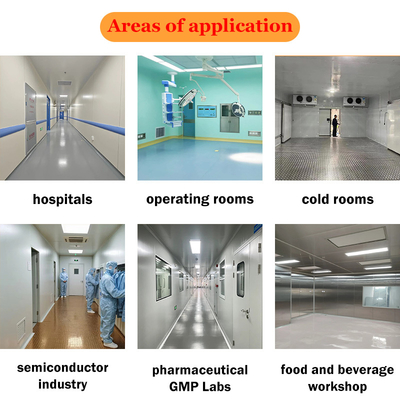

Ideal for various high-cleanliness environments including:
|
